Available on pre-order
VE-OBB-12100C

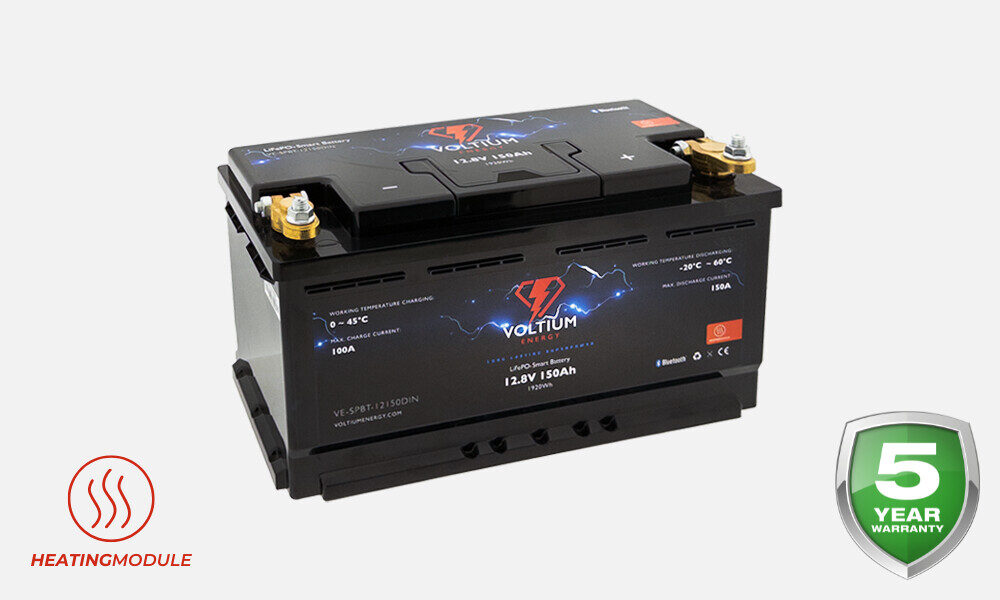

Voltium Energy® LiFePO4 Smart Battery 12,8V 150Ah DIN
- Perfect fit under your camper seat (DIN battery size)
- Fast and efficient charging and discharging
- Up to 10x more cycles than lead-acid
- Strong 150A discharge for demanding camper use
- Bluetooth® app for monitoring and insights
- Only one-third the weight of lead-acid
€ 949,00
General info
More capacity under your seat
The Voltium Energy® 12V 150Ah DIN LiFePO4 battery offers extra capacity while keeping the same compact DIN format that fits under the seat of most campers. It is the perfect choice for travelers who want more energy reserves without sacrificing space.
Reliable power for camper equipment
With a continuous discharge current of 150A and a peak of 800A, this battery easily handles heavy camper loads such as inverters, air conditioning, or induction cooktops. The built in heating module ensures reliable charging even at low temperatures so you can enjoy worry free energy supply in every season.
Efficient lightweight and durable
Despite its higher capacity this battery weighs only 15.5 kg, far less than a comparable lead acid battery. Combined with the fast charging efficiency and up to ten times more charge cycles, it offers long lasting and lightweight energy for your camper.
Control at your fingertips
The integrated Bluetooth® app allows you to monitor all relevant battery data in real time. This gives you full confidence and control wherever your journey takes you.
Applicable to
The Voltium Energy® LiFePO4 Smart Battery 12,8V 150Ah DIN is, among other markets, suited for the applications below. For more information about a specific application in relation to this product, you can click on one of the icons.
Download the
Voltium Energy app
With our Bluetooth® app, you can view and monitor the current status of your LiFePO4 battery!
Specifications
- Nominal Voltage
- Rated Capacity (CC 0.2C to 10V)
- Nominal Energy
- Internal Resistance
- Terminal type
- Cycle Life (@DOD 100% at 1C and ±25°C)
- Cycle Life (@DOD 100% at 0.2C and ±25°C)
- Connection options
- Communication
- Heating Module
- 12,8V (4S)
- 150Ah
- 1920Wh
- ≤30mΩ
- M10
- >3000
- > 6000
- 4 in series OR 4 in parallel
- Bluetooth®
- Yes
- Length
- Width
- Height
- Weight
- Housing material
- 350±2mm
- 176±2mm
- 188±2mm
- Approx. 15,5Kg
- ABS
- Storage Temperature
- Self-discharge rate
- Recommended storage SOC
- Storage condition
- 0-25°C
- ≤3% per month
- 50-70% SOC
- See manual
- Battery operation temperature range @charging
- Normal charge voltage
- Recommended float charge voltage (for Standby use)
- Max charge current
- Recommended charge current
- Charge Cut-off Voltage
- 0~45°C
- 14.6 ±0.1V
- 13.8 ±0.1V
- 100A at ±25°C
- 0.2C
- 15V ±0.2V
- Discharging temperature range
- Output Voltage Range
- Max discharge current
- Recommended discharge current
- Pulse discharge current
- Discharge Cut-off voltage
- -20~60°C
- 10.0~14.6V
- 150A at ±25°C
- 0.2C
- 800A withstand 3s
- 10.0V
